LOYO X Shaped LED Tail Lights Kit for Jeep Wrangler TJ YJ CJ, DOT Approved
LOYO X Shaped LED Tail Lights Kit for Jeep Wrangler TJ YJ CJ, DOT Approved
SKU:LY-TJBTL-X
Couldn't load pickup availability
LED Brake Light Turn Signal LED Rear Lights, Black Housing, Smoke/Red Lens
Add a custom appearance to your Wrangler with a set of unique X design tail lights. Whether your Wrangler is your daily driver or your weekend off-roading toy, these LED Tail Lights will be sure to set your YJ or TJ apart from all the rest.
Multi-function wrangler TJ LED tail lights assembly, can be used as tail light, turn signal light, brake light, back up reverse Light and running light. Full LED light brings brighter Lights than Halogen, providing outstanding illumination and driving safety.
DOT/SAE approved. These LED taillights will not only bring a fresh new look to your Wrangler, but they also meet or exceed the strict guidelines set forth by the U.S. Department of Transportation (DOT) and the Society of Automotive Engineers (SAE), making them legal for street use.
Quality Construction. Manufactured from OEM grade materials, these tail lights are assembled to precise standards for long lasting quality. These Tail Lights feature durable ABS Plastic with PC Lens. Each tail light is weather-sealed to prevent dirt and moisture from harming the state of the art electronics found inside. Back With rebreather hole, can get rid of moisture effectively.
Featuring built-in EMC to Anti-flicker, installation is easy. 3 studs can be mounted directly on any flat surface. It with 4-color coded wire connection for quickly installation; Black wire is ground for tail and brake light, red wire is brake/turn light, white wire is running light; Yellow & white wire is ground for reverse light.
This stop turn signal light work with most 12V vehicles, are designed to fit 1976-2006 Jeep CJ5, CJ7, Wrangler YJ and TJ Models. Sold as a pair, driver and passenger side lights are included.
Note: This is not a plug and play design. The nuts are 10mm. The holes will be required to open up. 1/4" bit or step bit will slide in perfectly
Specification
- SKU: LY-TJBTL-X
- Voltage: 12V
- Wattage: 15W
- Lifespan: Over 50,000 hours
- Certification: DOT, SAE
- Material: Durable ABS + PC Lens
- Housing Color: Black
- Lighting Mode: Turn Signal/Brake Light (Bright Red), Running Light(Red), Reverse Light (White)
Why Choose LOYO LED Light
- 1 year warranty, 30-day return
- Premium product quality
- EMC Built-in, anti-flicker harness
- DOT Certificated, make sure the lights legal on the road
Some minor wiring but I used original plugs and soldered and heat shrunk seal. Over all happy.

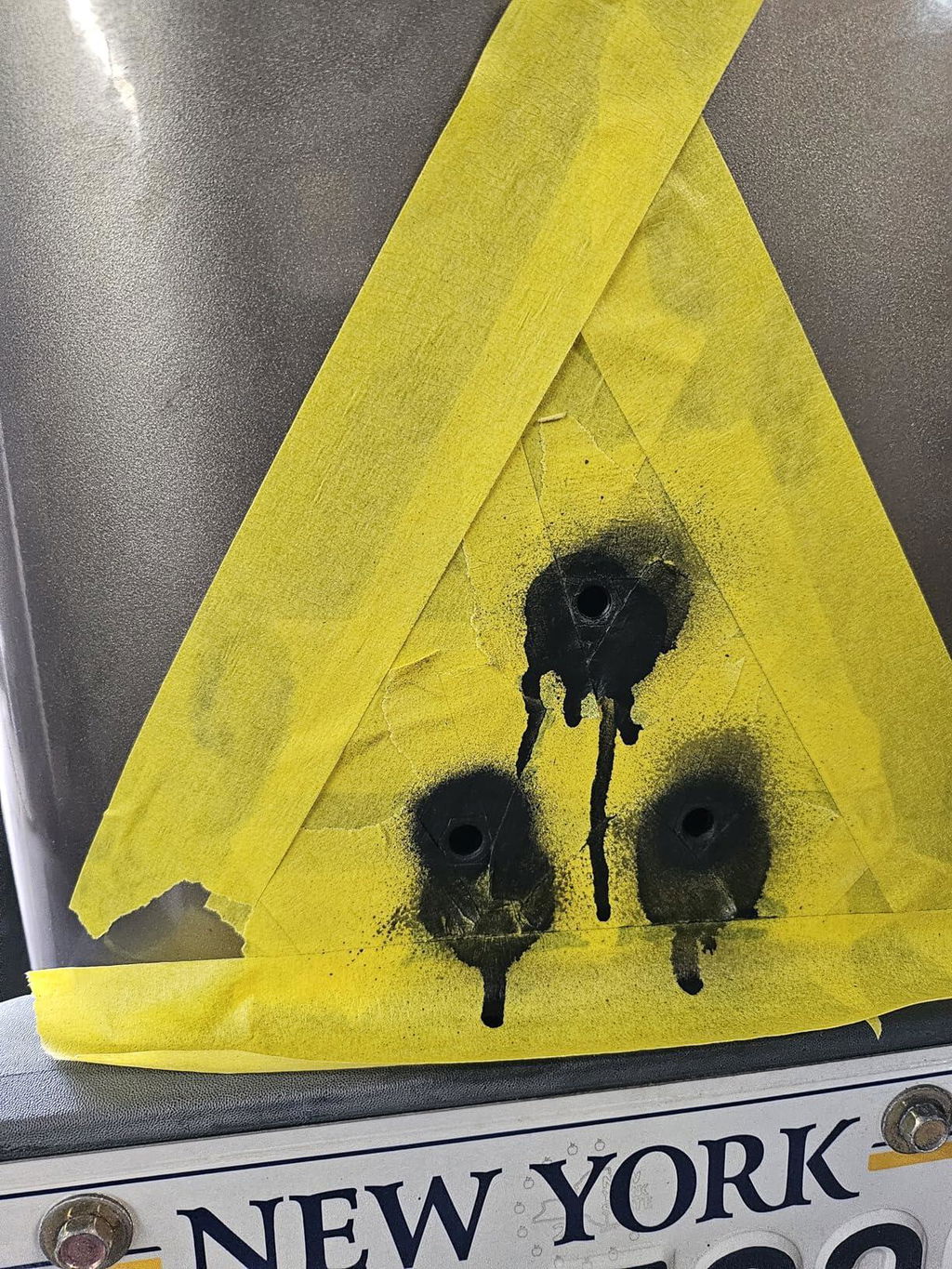

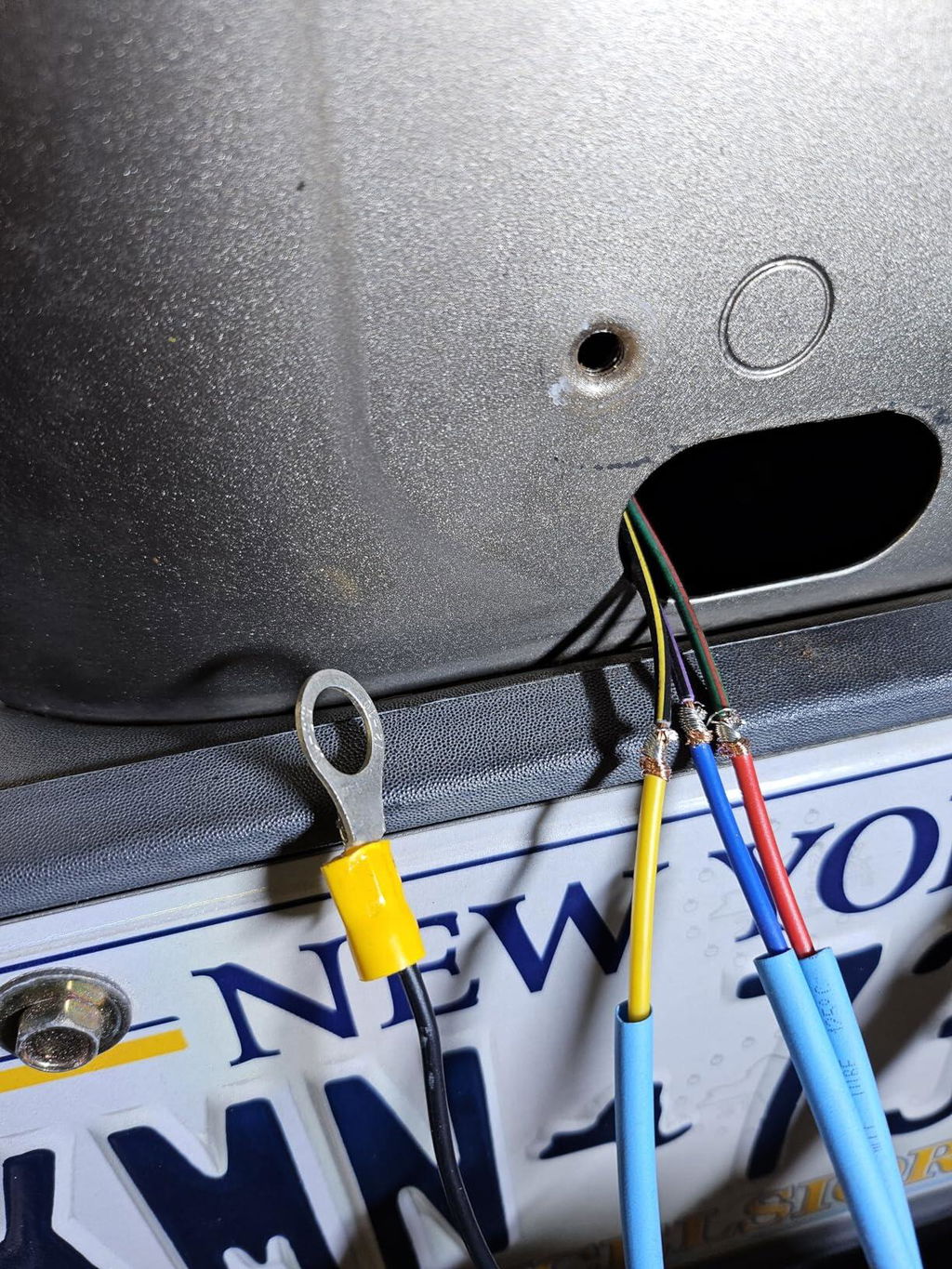

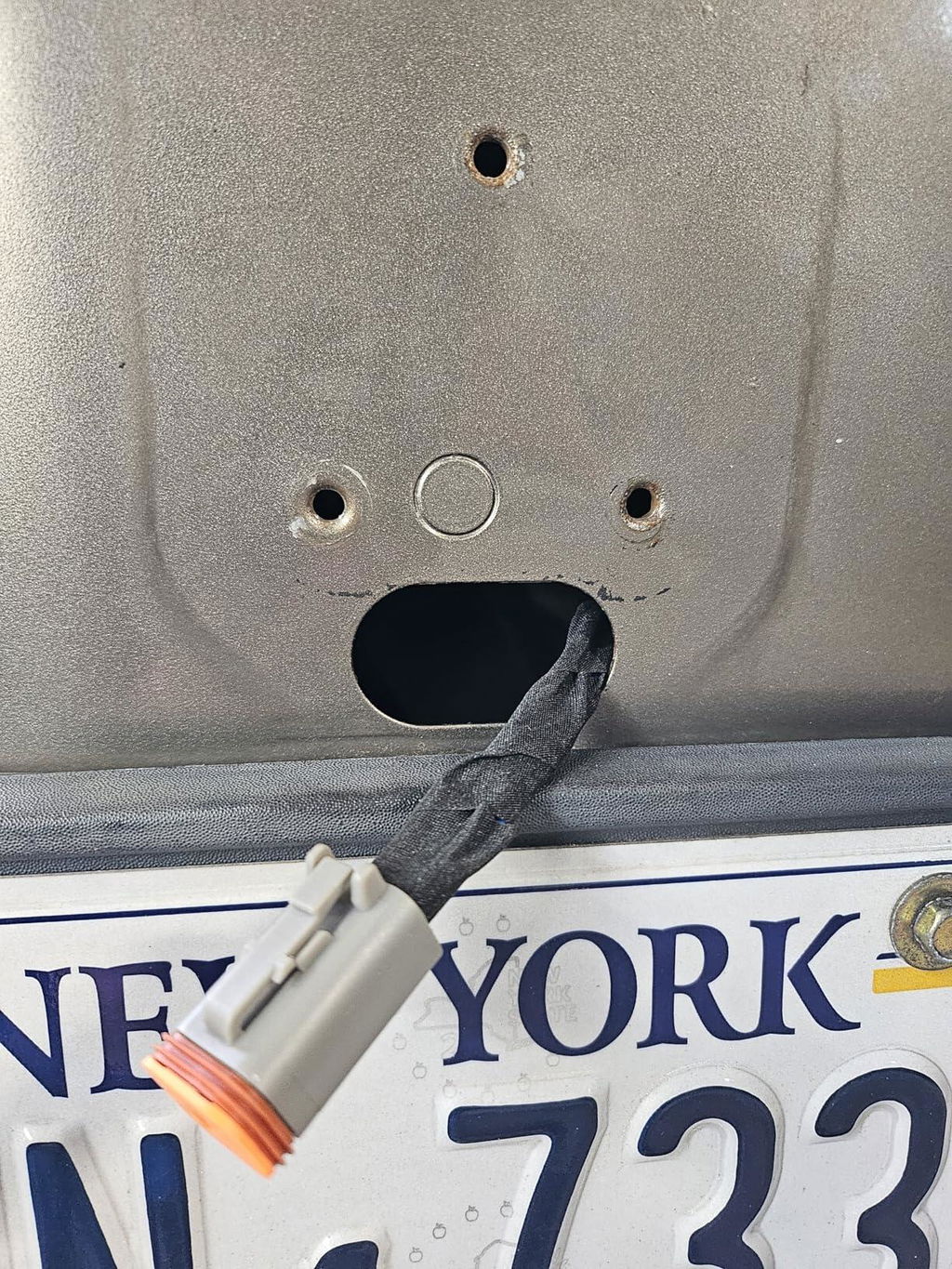

These are nice, bright and not an easy install for someone who is not too handy. I ordered a set of 4 pin male and female wire harness to make it easier to remove in the future. The holes needed to be drilled out a little for the bolts to fit and I also matched up the wires and had to ground it from the back using the same mounting nuts and bolts. Driver Side was easy, passenger side you gotta remove the wheel well cover and move the evap canister a bit to get your hands behind to tighten the nuts.
Easy replacement that actually fits! Bright and works perfect!
Pretty easy installation, had to drill the factory holes a bit bigger and upgrade my flashers on the fuse panel. Great look and function. Very bright. Perfect upgrade for my YJ !

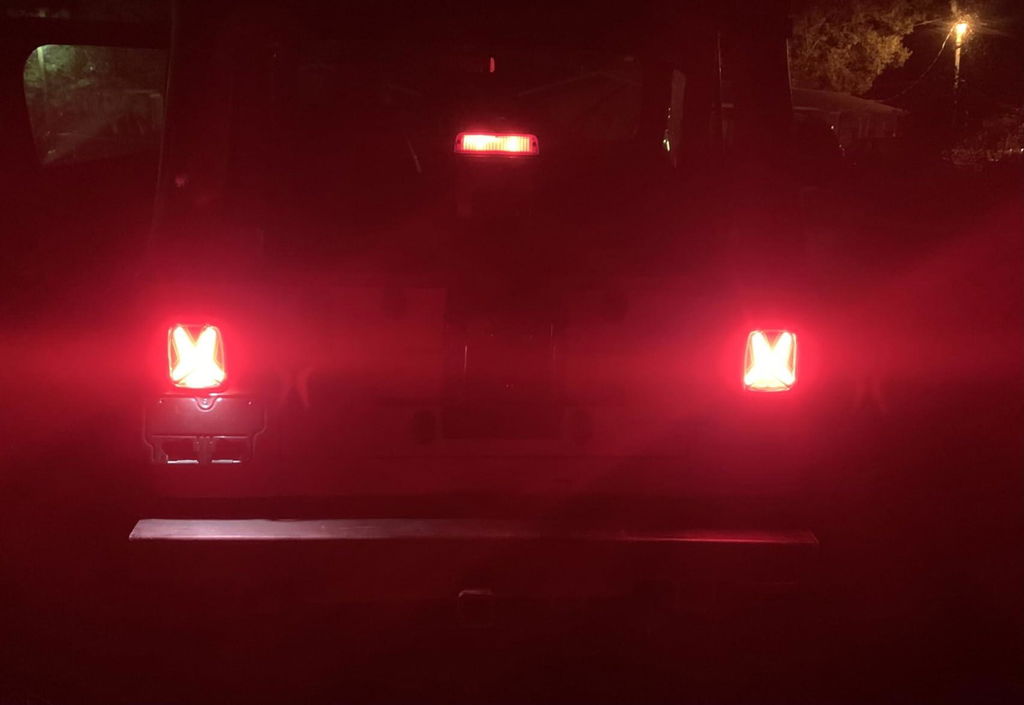

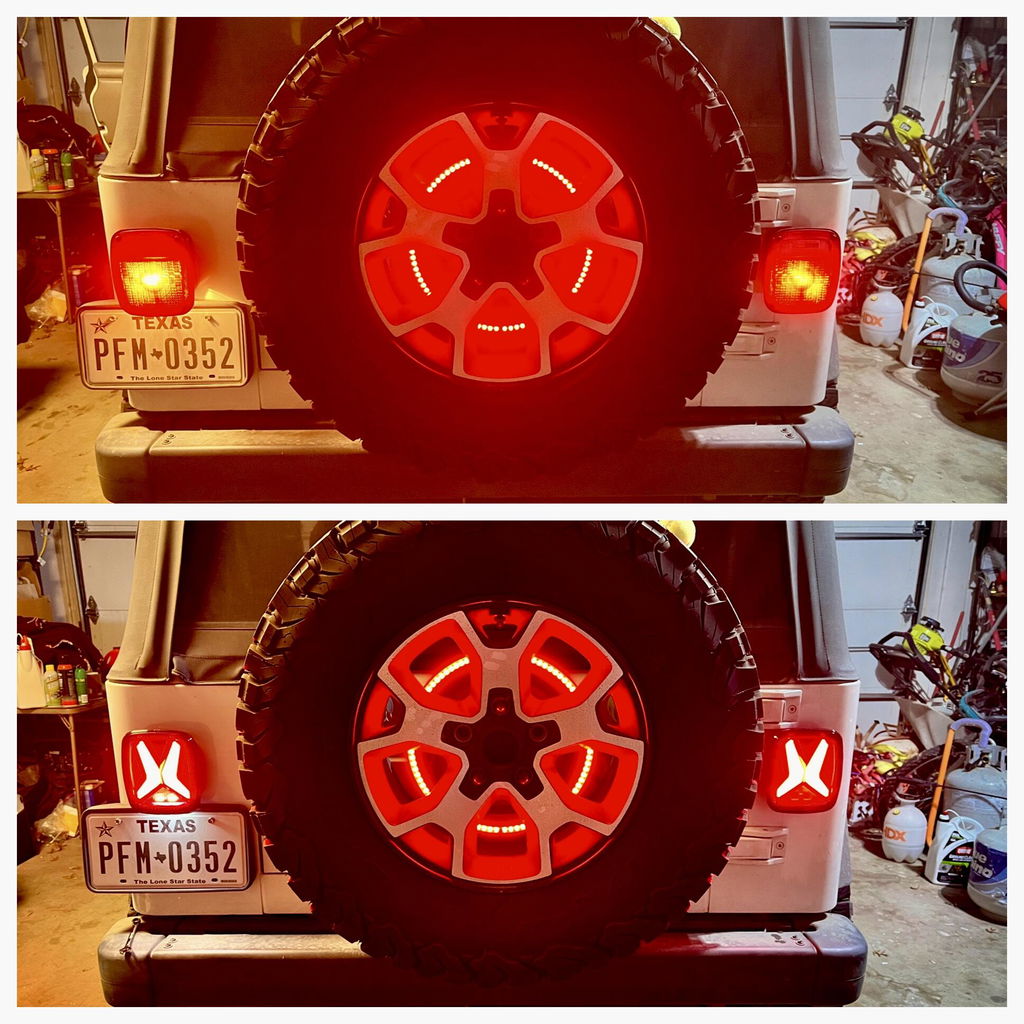

They look and function great. Passenger side on a TJ is quite a pain to get to. Had to remove inner fender liner, then remove Evap canister just to reach the backside of the nuts/bolts. Driver side there is plenty of room to work from underneath. PS, these are side specific due to the license plate light if it’s in stock location. Happy with my purchase. Picture posted is just the tail light on/running light.
They look Great. Very bright and the smoked lenses look just as I wanted them to look.👍👍

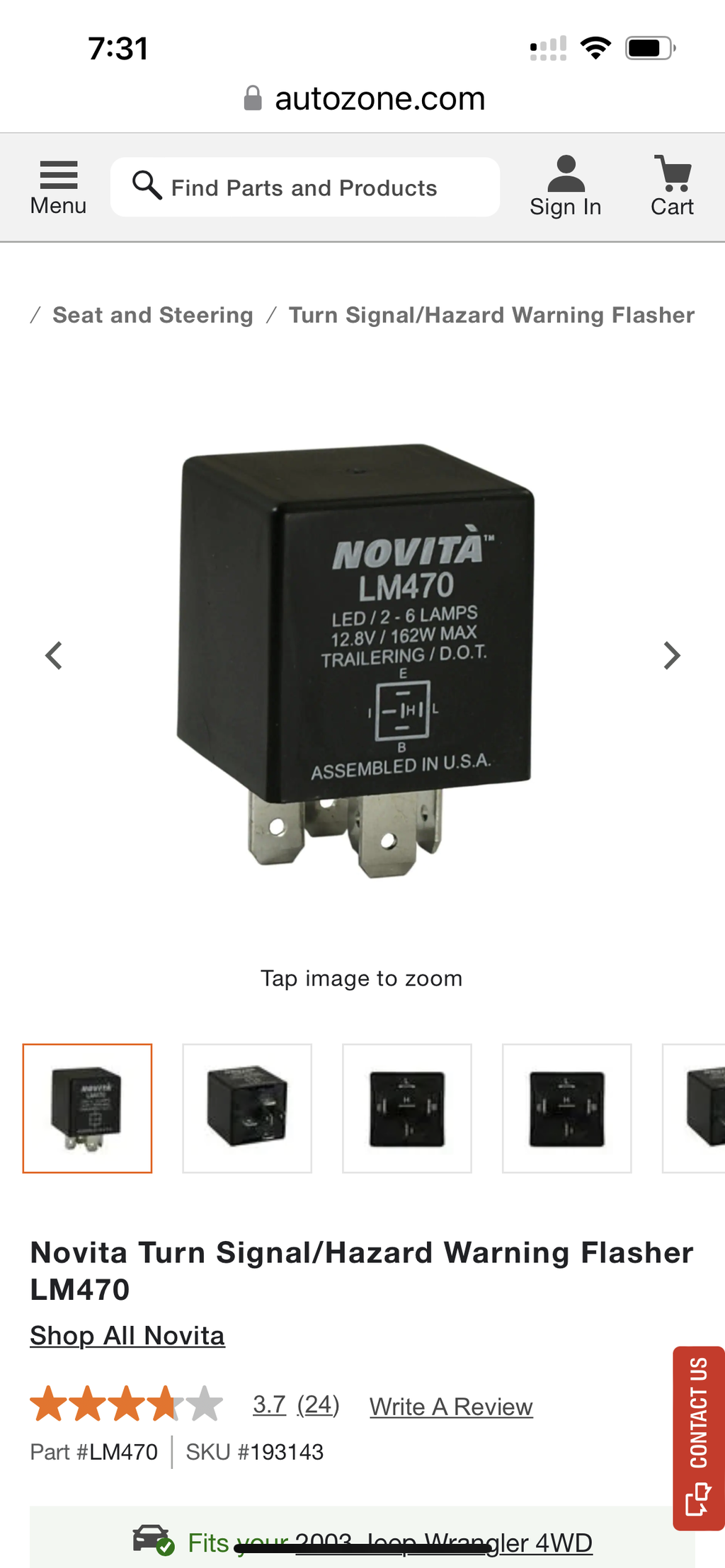

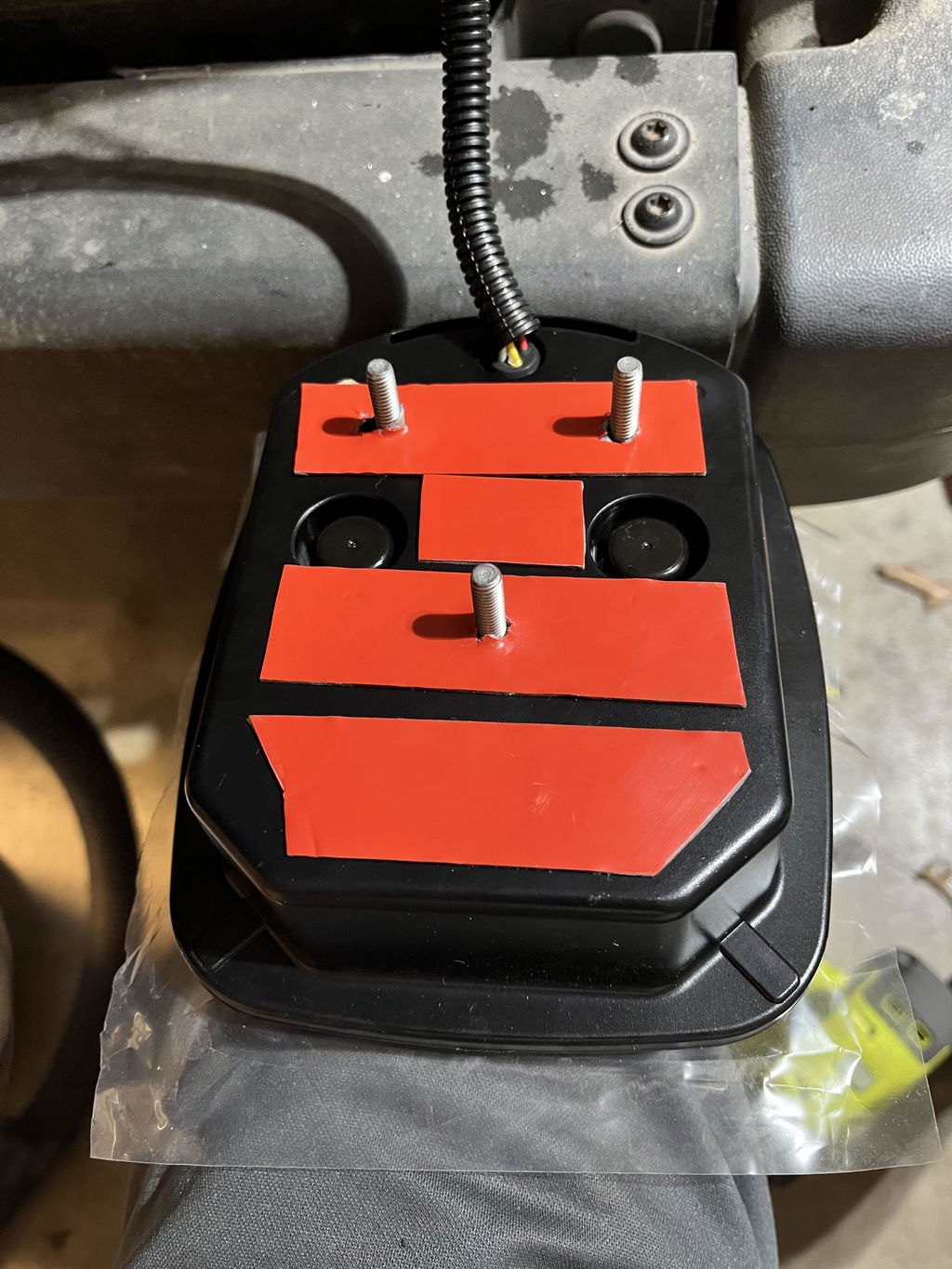

Absolutely love the look of these! Wiring was straight forward and just clipped the pigtail off the old lights and soldered to the new lights. If you don’t already have an LED flasher relay you’ll have to install one to prevent hyper flashing. I did a lot of research and settled on the Novita LM470 from AutoZone and this fixed the issue. I have been looking for a couple years for new taillights and everything out there for the TJ looked just like the clunky OEM lights except with LED’s. It was easy enough to put the nuts on the back of the drivers side once I drilled out the holes (great video on YouTube). The passenger was impossible unless you removed the inner fender and the EVAP canister behind the taillight. I chose to just drill out the holes and used heavy duty outdoor mounting tape (Home Depot) and it worked perfect. Super bright and modernized the rear of my TJ. Highly recommended of you want rear LED’s with a modern look.
These lights look great! They give my TJ a more modern look and since the housing is smaller than stock hopefully is less likely to be broken by a branch or rock while wheeling.They are light but feel well made and the light output is nice and bright.
But they need some modifications to fit.

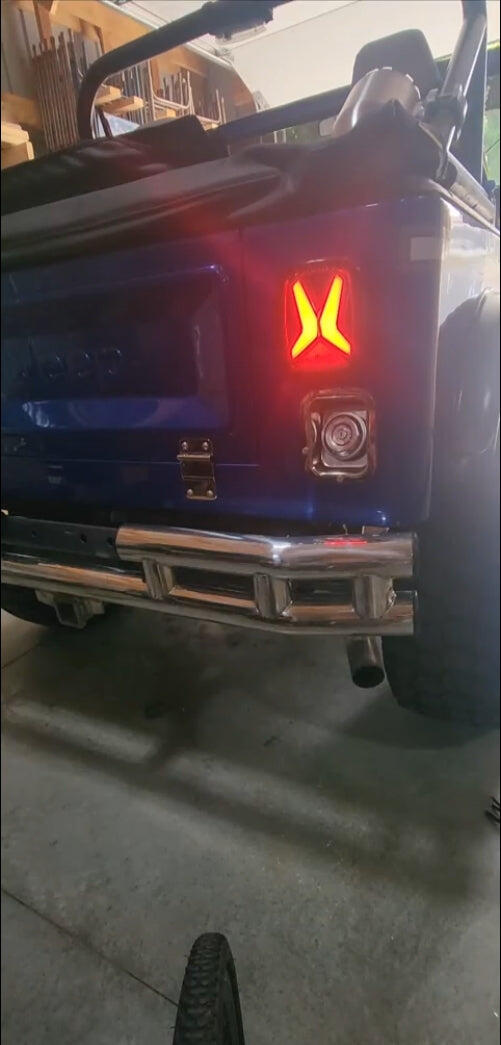

Got these for my old cj5. I put some LED headlights in it and these matched those better than the stock ones. They seem to be of good quality and mounted up just like the stock lights. Even with the smoke color, they are much brighter than the stock units. The lenses are made nicely in that the X illuminates completely and doesn't look like a bunch of individual LEDs inside. The reverse lights are nice an bright as well.
Wiring was easy and the wiring diagram was right on the box. They are a little slimmer than the factory Jeep tail lights so they don't stick out quite as far off the back of the Jeep as the factory ones do. I would definitely recommend these if your looking for a slightly different look for your Jeep without going too wild.
Love my tail lights. There awesome
Took old lights off jeep and replaced with these with ease.Awesome price.
Very bright
Instructions are a bit confusing
Lights look great and work as they should
Big improvement over stock
Great for the price
If you are starting with a good platform the installation will be a breeze. If not I recommend buying 3 prong male/female connectors
Great lights pretty bright. I installed them on my 2003 Wrangler relatively easy install. Only drawback is they should've come with resistors to fix the Hyper blink.
Easy installation and operation is perfect.
Works as they should however they do not mount without modification.
Nice light but the instructions are terrible. I like the light but took way longer than it should.
1991 Jeep Wrangler YJ fit perfectly and looks great. Very bright and the backup lights are exceptionally bright.
Très beau look et facile à installer!
Difficult to wire up but once done very nice looking
Conforme a las especificaciones de buena calidad
Fast shipping. Great quality and easy to install
They look like they will last a while. No water in them yet. Not much out there to WOW me for a TJ.
Wish I could have used the factory hardware.
Having to drill out the threads on my factory mounting holes and then put nuts and washers on the back was a pain...
LOYO X Shaped LED Tail Lights Kit for Jeep Wrangler TJ YJ CJ, DOT Approved
Smooth installation - i watched several you-tube videos for tips with install. These needed no License plate bracket mods. However accessing the nuts proved a bit cumbersome. I have a Renegade body (wide) this required taking off inner fender well for nut access. Not a big deal!
The lights look fresh and provide adequate light as they don't appear any brighter than the OEM'S
Great value if they last !
