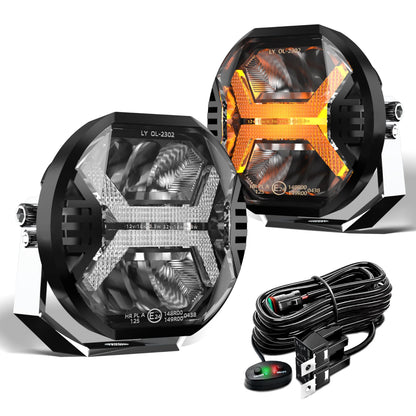

LOYO 4 Inch LED Pods Off Road Driving Lights Cube with Amber DRL, 48W 10000LM LED Light Bar For Trucks Jeep Ford UTV ATV

💡 10,000 Lumens Total Output — 5,000LM Per Light
Each pod delivers 5,000 lumens of 5700K cool white light from a 24W E-Mark certified LED chip array. Together, the pair outputs 10,000 lumens — more than enough to turn a dark trail into a lit road. The wide flood/spot beam pattern illuminates both distance and peripheral vision, eliminating the dark edges that trip up most off-roaders.

✖️ Signature Amber X-DRL Design
The X-shaped amber DRL isn't just decorative — it's a visibility statement. Running the amber DRL increases your presence to oncoming vehicles and bystanders without blinding them, making it ideal as a daytime running light or as a secondary mode during trail runs. It's also what gives the WindTunnel Series its unmistakable identity on any build.

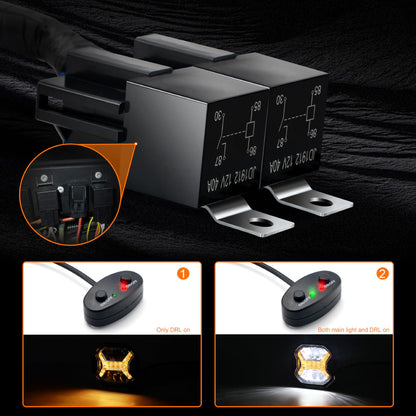

🔌 Complete DT Wiring Harness Included
Unlike lights that ship with bare wires and a relay, this kit includes a fully assembled DT connector wiring harness — the same connector standard used in motorsport and heavy-duty applications. Waterproof, vibration-resistant, and built to stay connected on the roughest terrain. Pro tip from one of our customers: use an auto fuse adapter for the DRL circuit for the cleanest install.

🛡️ IP68 Waterproof + Built-in EMC

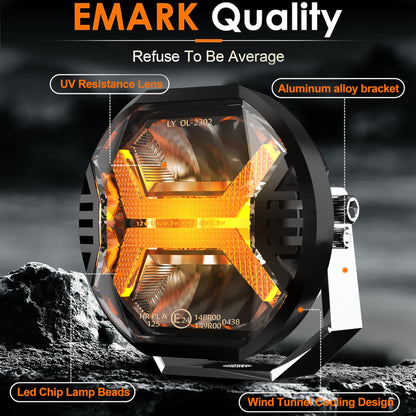

Rated IP68 — fully sealed against dust and capable of sustained water submersion beyond standard splash protection. The built-in EMC (electromagnetic compatibility) module ensures zero radio interference and true plug-and-play performance with no additional decoders required. UV-resistant PMMA lens protects light output quality over time.

⚡ Universal 9–32V Compatibility
Compatible with virtually any 12V or 24V vehicle or equipment — trucks, Jeep, Ford, Chevy, UTV, ATV, SUV, boats, tractors, trailers, excavators, forklifts, golf carts, agricultural vehicles, and emergency or rescue lighting applications.

• SKU: LY-WT-4.5-ADRL
• Power: 24W each piece
• Input Voltage: DC9-24V
• Lamp Cup Material: PMMA+ Aluminum
• LED Color: Cool White Color + Amber Color
• Luminous Flux:5,000 LM Per Light
• Working Life: Above 50000 hours
• Weatherproof Rating: IP68
• Warranty: 12 months

Q1: How many lumens does each light produce? The title says 10,000LM — is that per light?
A: 10,000 lumens is the combined output for the full 2-pack. Each individual light produces 5,000 lumens at 24W. Together they total 48W and 10,000LM — a significant output for a 4-inch form factor.

Q2: What's the DT connector and why does it matter?
A: DT (Deutsch connector) is a heavy-duty waterproof connector standard commonly used in motorsport, marine, and industrial applications. It's significantly more reliable than standard automotive bullet connectors — it won't corrode, vibrate loose, or pull apart when you're bouncing through rough terrain. It's one of the reasons this kit is built for genuine off-road use rather than just light trail driving.

Q3: Do I need any additional parts to install these?
A: The kit includes a wiring harness with relay, switch, and fuse — everything needed for a complete install on most vehicles. One of our customers recommends using an auto fuse adapter for the DRL circuit for an even cleaner, tap-free installation.

Q4: What vehicles and equipment are these compatible with?
A: These lights work with any vehicle or equipment running DC 9–32V, including 12V and 24V systems. Compatible with trucks, Jeep, Ford, Chevy, GMC, UTV, ATV, SUV, motorcycles, boats, tractors, trailers, forklifts, excavators, golf carts, agricultural vehicles, and emergency / rescue vehicles.

Q5: Are these E-Mark certified? Can I use them on public roads?
A: These lights carry E-Mark certification. However, regulations around auxiliary off-road driving lights vary by state and country. In many jurisdictions, additional forward-facing lights must be switched off on public roads unless they serve as DRL (which the amber X-DRL mode can function as). Always check your local regulations before mounting additional lights for on-road use.

Q6: How long is the rated lifespan?
A: The LED chips and housing are rated for 50,000+ hours of operating life under normal conditions. At 4 hours of use per day, that's over 34 years of service life — these lights will almost certainly outlast the vehicle they're mounted on.

Q7: What warranty is included?
A: LOYO provides a 12-month warranty and 30-day return/exchange policy from the date of receipt. If you receive a damaged or defective unit, contact us within 48 hours at support@loyoled.com with photos and a short video and we will resolve the issue promptly.
