LOYO RGB 7 Inch LED Headlight Fog Lights Combo Kit, DOT Approved RGB Halo Light for Jeep Wrangler JK JKU TJ LJ 1997-2017

• Headlights Lighting Mode: High Low Beam, Amber Turn Signal, RGB DRL,
• Each Headlight: 60W@Low Beam, 120W@High Beam
• Featuring Gradient Welcome Halo DRL
• DOT E-Mark Dual Certified
• Fog Lights: 30W Each light, 3 Lighting Mode(RGB DRL, Fog Light, Turn Signal)
• All-in-One Kit. Plug and Play installation
• Built in EMC. Waterproof IP67.
• Die-cast Aluminum Housing with Breath Valve
• UV-resistant and Anti Scratch PC Lens
• Perfect replacement for Jeep Wrangler JK halogen stock headlights and fog lights

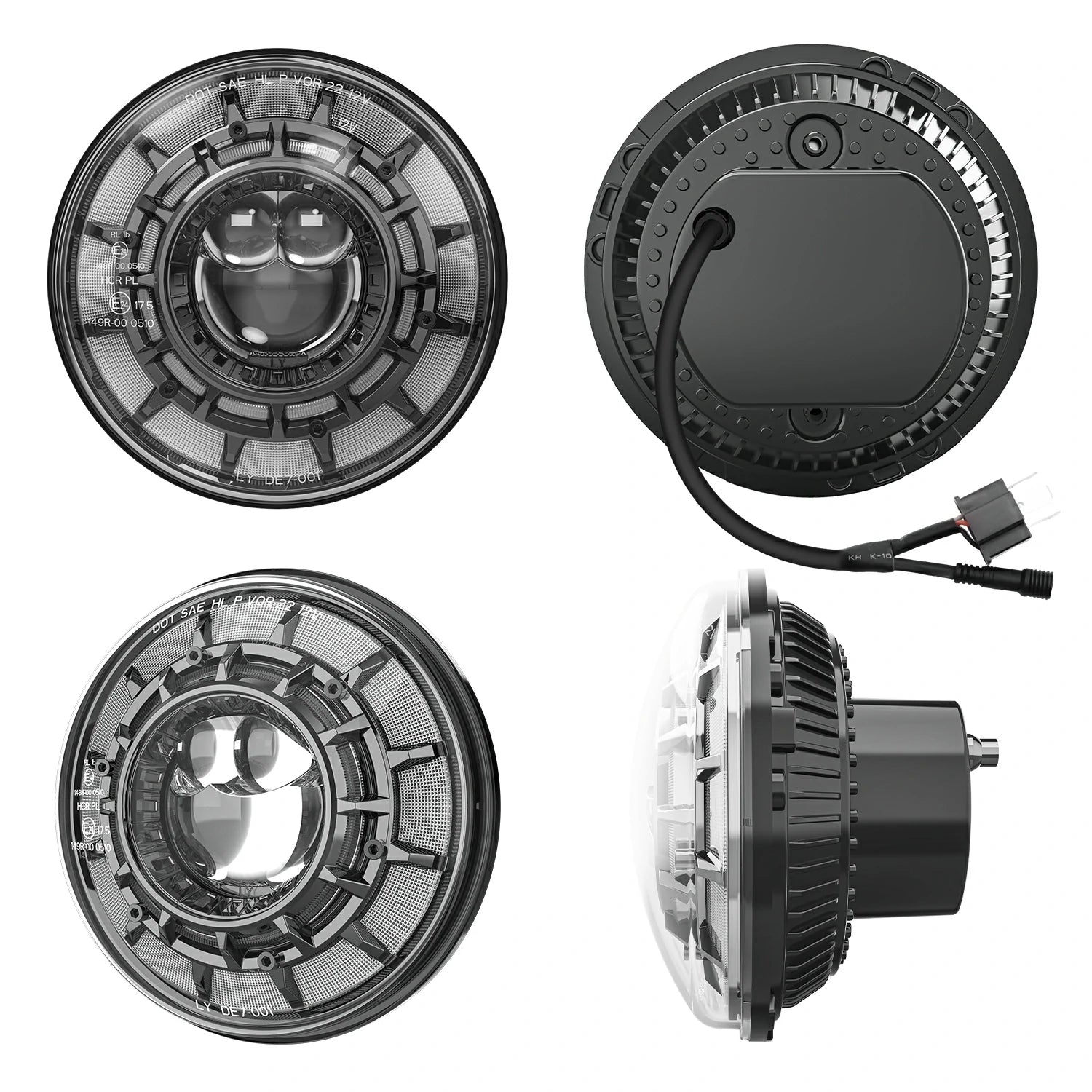

Tech Specs - 7 inch RGB Headlights

• SKU: LY-SS7-001RGB
• Input voltage: 9-16v
• Waterproof Grade:IP67
• Power: 60W@High Beam, 30W @Low Beam
• Luminous Flux: 3000LM@Low Beam, 6000LM@High Beam Each Lights
• Color: Black Housing
• Lamp type: Philips
• Lamp Cup Material: PMMA+PC
• Color Temp: 5700K
• Certification: DOT, E-Mark

Tech Specs - RGB Fog Lights

• SKU: LY-4-RGB
• Waterproof: IP67
• Input voltage: DC 9-16V
• Luminous flux: 1440LM
• Color temp: 6000K-6500K
• Life-span: Above 60,000 hours
• Lamp type: 6pcs 5W Osram LED
• Housing Material: Die-cast Aluminum

Q1: How does the RGB halo work? Do I need a separate controller?
A: The RGB halo rings are controlled via a smartphone app (compatible with iOS and Android via Bluetooth). Through the app you can choose from 16 million colors, select from 121 preset lighting modes, activate music sync mode so the lights pulse to your audio, and set custom patterns. No separate physical controller is required.

Q2: Can the RGB halo and the headlight beam function at the same time?
A: Yes. The RGB halo operates as a decorative DRL/accent light independently from the main beam. You can run the RGB halo in any color or mode while the high beam, low beam, and turn signals all function normally at the same time.

Q3: Will these headlights cause flickering or radio interference on my JK?
A: No. These headlights feature a built-in EMC (Electromagnetic Compatibility) anti-flicker function, so no extra decoder or load resistor is needed. They are specifically engineered to eliminate the flickering and radio interference issues commonly reported with generic LED headlight upgrades on Jeep Wranglers.

Q4: Are these headlights DOT approved? Are they street legal?
A: Yes. This combo kit carries both DOT approval (DOT SAE HL VOR 12V LY DOT7-001) and E-Mark certification (HCR-PL-E149R00 050 & E148R 00 050), meeting Section 108 of the Federal Motor Vehicle Safety Standards. The compliance markings are etched directly onto the lens. They are fully street legal in the U.S.

⚠️ Note: While the headlight beams are DOT approved for road use, some states may have restrictions on the use of colored RGB lighting (halo) while driving on public roads. We recommend checking your local regulations regarding decorative lighting.

Q5: How difficult is the installation? Do I need a professional?
A: Installation is plug-and-play and typically takes 1 hour. No wiring modifications, cutting, or splicing are required. Both the headlights and fog lights connect directly to your factory wiring harness. The Bluetooth app pairs automatically with the RGB module after installation. Most Jeep owners complete the install with basic hand tools.

Q6: What is the beam pattern on these headlights?
A: These headlights produce a precision-engineered "Z-shaped" cut-off beam pattern on low beam, which maximizes road coverage while eliminating upward light scatter that would blind oncoming drivers. The high beam delivers focused long-range illumination. The combination of headlights and fog lights also eliminates dark spots and blind zones directly in front of the vehicle.
