Today we're checking out the Sunlight 9-inch LED replacement headlights with dual function white daytime running light and amber turn signal halo rings for the 2018 and newer Jeep Wrangler JL and 2020 - newer Jeep Gladiator JT.
This 9 inch headlight from LOYO is a true replacement headlight designed specifically with the Wrangler jail and Gladiator JT in mind and that means there's no additional brackets or trim rings required to get them mounted in the grille of your Jeep. They're going to bolt right in and fill up that entire headlight bucket, and the housings have been engineered to include a tough and durable polycarbonate lens as well as an IP67 waterproof rating. They also feature all Dot and SAE approvals making them 50 state street legal in US.
The Sunlight headlights feature a large center projector that illuminates for your low beam outputting 3,000 lumens of light to illuminate the road, and trail ahead of your jeep with a super sharp cutoff beam to make sure that none of that light bleeds up blinding oncoming traffic. When you illuminate the high beam, three additional projectors on the top half of that lens will illuminate giving you a total of 6,000 lumens of light to light up the road in front of you, drawing just 100 watts of power.

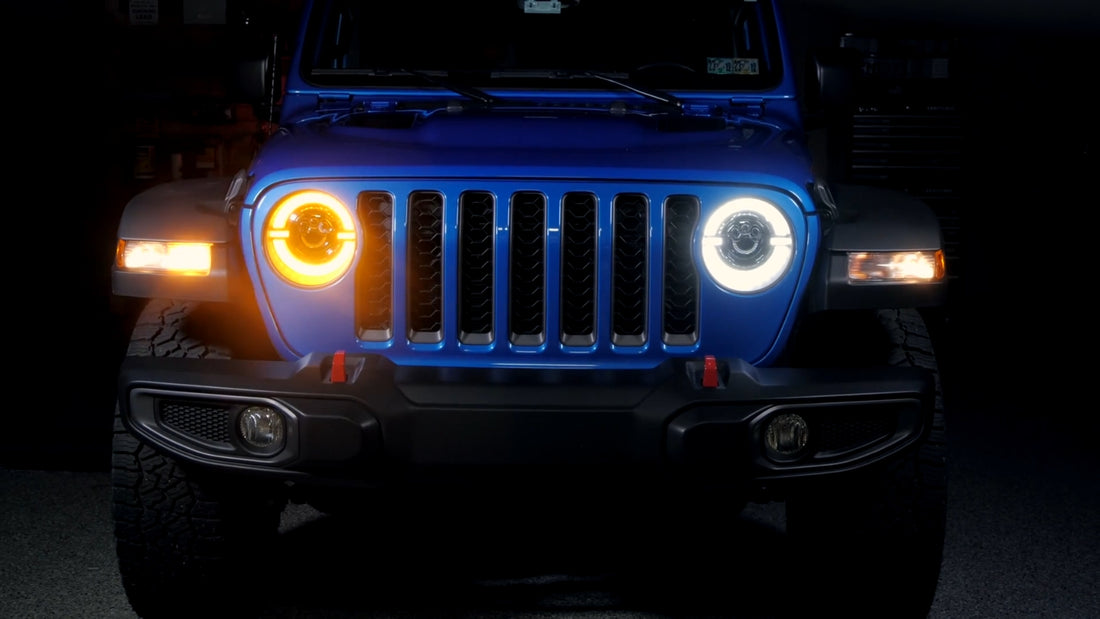

The low and high beam light is designed to be a plug and play install featuring a factory style connector. There's also the added functionality of a dual function halo ring that illuminates white with your daytime running light, and amber with your turn signals. The Halo ring will require the addition of two wires to be added to your system that can be done with some minimal wiring.
LOYO 9 inch Sunlight LED Headlights installation
Upgrading your Jeep with Sunlight 9-inch LED headlights is a straightforward process. Follow this step-by-step guide to ensure a smooth installation.
Tools and Materials Needed- 10mm socket and ratchet
- Screwdriver
- Test light
- Spade connectors
- Electrical tape
Installation Steps
Step 1: Remove the Grille- Open the Hood: Lift the hood of your Jeep.
- Remove Push Clips: Locate the six push clips along the top edge of the grille. Use a screwdriver to remove them.
- Detach the Grille: Carefully pull the grille away from the front of the Jeep.
Step 2: Remove the Factory Headlights
- Locate the Bolts: The factory headlights are secured with three 10mm bolts.
- Remove Bolts: Use a 10mm socket and ratchet to remove the bolts.
- Unplug the Connector: Pull the headlight away and unplug the factory connector.
Step 3: Install the New Headlights
- Connect the Headlight: Plug the factory-style connector into the new Sunlight headlight.
- Secure the Headlight: Reinstall it using the three factory bolts.
Step 4: Connect DRL and Turn Signal Wires
Access Running Light Socket: Turn the running light socket counter-clockwise and remove it from the housing. Use a test light to check for 12v+ power. The white/brown wire is the DRL wire in this vehicle. Connect the DRL wire lead to the white/brown wire and run the spade end to the headlight bucket.
Locate Turn Signal Wiring: Use a test light to find the turn signal wires. The left side uses the white/green wire, and the right side uses the white/beige wire. Connect the turn signal wire lead to the appropriate vehicle wire and run the spade end to the headlight bucket.
Step 5: Final Connections and Testing
Connect Wire Leads: Attach the two wire leads to the headlight wiring.
Test Functionality: Before securing everything, test the functionality of the headlights, DRL, and turn signals to ensure proper connections.
Step 6: Secure and Finish
Secure Wiring: Use electrical tape to secure connections and tidy up the wiring.
Reattach Grille: Once everything is tested and working, reattach the grille to the front of the Jeep.
Congratulations! You’ve successfully upgraded your Jeep with Sunlight 9-inch LED headlights. Enjoy enhanced visibility and the stylish halo feature.
